House Plan # R1690

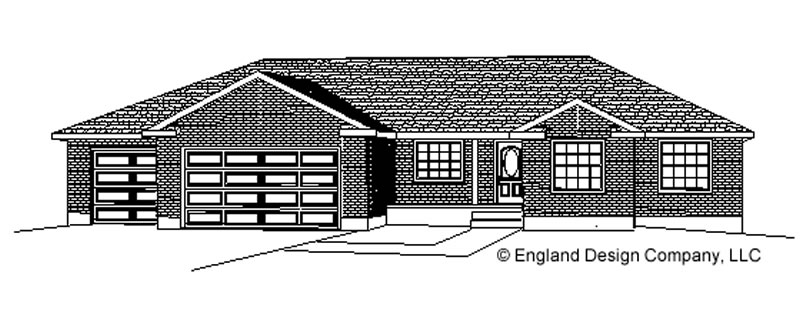

Front Elevation

Square Footage
Main Level Sq. Ft. 1690
Basement Sq. Ft. 1760
Garage Sq. Ft. 1012
Total Living Area 3450
Dimensions
Width 72.10
Depth

53.8

Ridge Height
Room Statistics
Bedrooms 6
Baths 3
Parking Spaces 3
Other Special Feature Rooms:
Formal Living Room
Plan Description
This house plan was designed for a walk out basement with the lot sloping to the back of the home, though it would be easily redlined to build without a walkout or different sloping conditions. This is a popular plan with a full master suite, main level laundry and a large kitchen island.
House Plan Pricing
Study Set [8.5x11] $99
Five Sets of Blueprints $599
Reproducible Vellums $749
Select a Plan Package
*Cost of a study set can later be applied to a complete package.
Construction Specifications
Primary Roof Pitch 6/12
Secondary None
Exterior Framing 2x6
Vault Locations Great room, Kitchen, Dining, Entry and Formal Living
Foundation Type Basement
Exterior Materials Brick
Roof Framing Trusses
Fireplaces Great Room, Bsmnt Family Room

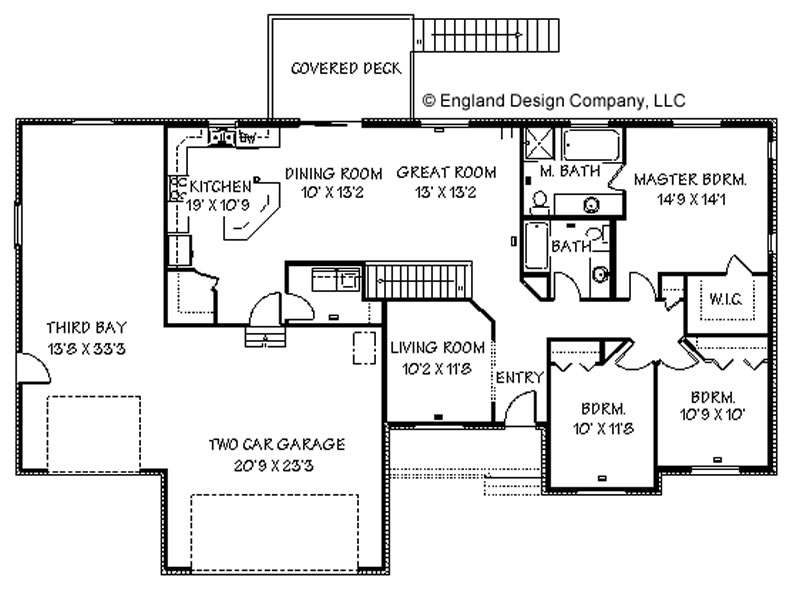

Main Floor Plan
